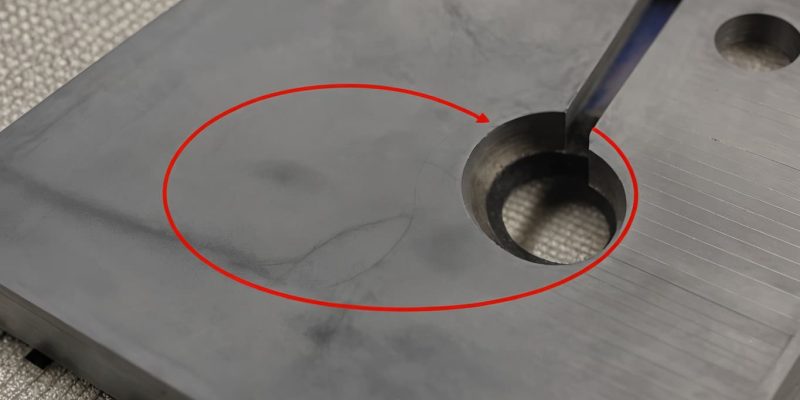

Weld lines, also known as knit lines or meld lines, are visible lines or weak areas that appear on the surface of plastic parts where two or more flow fronts of molten plastic meet and fail to bond completely. These lines typically appear as hairline marks and are often associated with reduced mechanical strength and visual imperfections.
Weld lines form during the injection molding process when the molten plastic flows around an obstacle, such as a core pin or insert, and then rejoins on the other side. If the temperature, flow rate, or pressure is not optimal, the flow fronts may not fuse properly, creating a weak bond at the interface.
Understanding weld lines is critical for manufacturers because they can compromise both the structural integrity and appearance of the final product. Identifying and mitigating weld lines early in the design and production stages can significantly enhance product quality and performance.

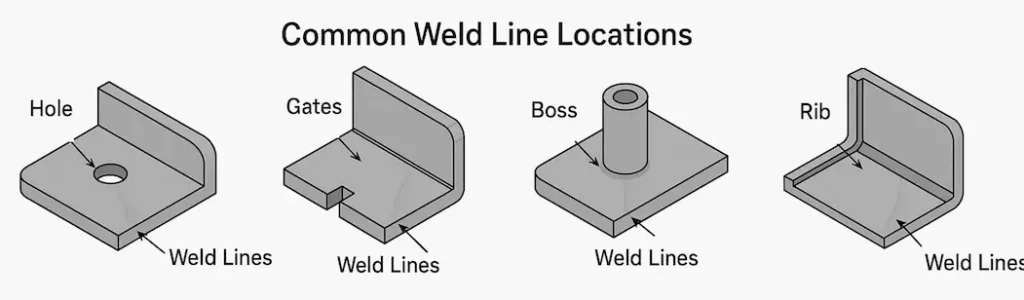

Several factors contribute to the formation of weld lines in molded parts. These include:
- Part design: Sharp corners, holes, or ribs can divert flow paths and cause multiple melt fronts to converge.
- Material properties: Viscosity, melt temperature, and filler content influence the mobility and bonding of the molten resin.
- Processing conditions: Low mold temperature or injection speed can cause the melt to cool too rapidly, leading to poor fusion at the meeting points.
In real-world applications, weld lines are commonly seen in parts with complex geometries or multiple gates. For instance, automotive components with integrated clips or holes often exhibit weld lines near those features.
I think the most effective way to avoid weld lines is to add a valve gate near the material convergence. By using a valve gate system, the needle valve can be opened precisely when the molten plastic reaches the convergence area. This controlled gating minimizes the time the two melt fronts remain separate, allowing them to merge under optimal thermal and pressure conditions. Several studies, such as those published in the Journal of Materials Processing Technology (Vol. 209, 2009), have shown that valve gating can improve weld line strength by up to 30%. In contrast, relying on cosmetic measures like applying surface texture is not very effective. Texturing can mask the appearance of weld lines but does not eliminate the underlying structural weakness.
Weld lines can severely impact both the mechanical and visual quality of injection molded parts:
- Mechanical strength: The interface where melt fronts meet often has lower tensile strength. According to a study by the Society of Plastics Engineers, weld line strength can be 30–70% lower than that of the surrounding material.
- Aesthetic issues: Visible lines or discoloration can reduce the visual appeal of consumer products, especially in high-gloss or transparent parts.
- Functional risks: In applications such as electrical housings or medical devices, weak weld lines can lead to fractures or failure under stress, posing safety and reliability risks.
Addressing weld lines is essential for ensuring product integrity, customer satisfaction, and compliance with safety standards. Design modifications, optimized processing settings, and advanced techniques like valve gating should be considered during the early stages of product development.
One of the most effective strategies to prevent weld lines is optimizing gate design and location. Placing gates near the area where two flow fronts meet can significantly reduce the risk of a weak weld line. I believe the most efficient method is to incorporate a valve gate near the material convergence. When molten plastic reaches this gate, opening the needle valve at the right moment ensures continuous flow, preventing the fronts from merging cold and forming a visible weld line.
Adjusting processing parameters also makes a difference. The following adjustments are commonly recommended:
- Increase mold temperature: Promotes better fusion of molten fronts.
- Raise injection speed and pressure: Enhances flow uniformity and prevents premature cooling.
- Ensure proper venting: Allows trapped air to escape, which improves bonding and surface finish.
Material selection plays a crucial role as well. Polymers with better flow characteristics and higher melt strength, such as Nylon or ABS with appropriate additives, tend to form fewer weld lines. According to a study by the Society of Plastics Engineers, materials with high melt flow index (MFI) reduce weld line visibility by up to 40%.
Designing with the goal of minimizing weld lines starts with understanding flow behavior. Best practices include:
- Avoid sharp corners and thin walls: These can cause flow separation, which leads to weld lines.
- Use rounded transitions: This promotes smoother flow paths.
- Place ribs and bosses away from critical flow paths: This helps maintain uniform flow.
Mold design also has a significant impact. Adding flow leaders or flow restrictors can redirect the melt to avoid premature flow front convergence. Hot runner systems and sequential valve gating, in particular, enable better control over material flow and gate timing. As mentioned earlier, I recommend placing a valve gate near the convergence point to eliminate weld line formation effectively.
Several automotive parts manufacturers have successfully minimized weld lines by redesigning gate positions and using valve gating. For instance, Toyota reported a 30% reduction in weld line visibility after switching to a sequential valve gate system in their dashboard components.
Identifying weld lines typically involves visual inspection, microscopy, and non-destructive testing like ultrasonic evaluation. Advanced CAD simulation tools such as Moldflow can also predict weld line locations and help assess their severity.
To improve existing weld lines:
- Use localized heating (hot pins or inserts): This enhances fusion at the weld line.
- Apply chemical surface treatments: These can improve bonding and surface aesthetics.
- Avoid relying on texture: While some use surface textures to hide weld lines, I believe this method does not address the core issue and only masks the defect.
Iterative design improvements should be based on data from initial failures. For example, if a weld line appears consistently at a thin section, increasing wall thickness or adjusting gate placement in subsequent designs can eliminate the issue. Studies show that iterative mold design improvements can reduce weld line-related defects by up to 60%.
Weld lines form when two or more flow fronts of molten plastic meet and solidify before fully bonding. Mold design significantly influences where and how these weld lines occur. Poor flow paths or abrupt geometry transitions increase the likelihood of visible and weak weld lines. Key design features that help reduce weld lines include:
- Balanced flow paths to ensure even filling.
- Rounded corners and smooth transitions to avoid abrupt changes in flow direction.
- Strategically placed gates to control flow fronts.
One of the most effective interventions is the use of valve gates. I think the most effective way to avoid weld lines is to add a valve gate near the material convergence. When the molten plastic reaches the gate, opening the needle valve allows fresh material to fill the area, preventing premature merging of flow fronts. This method has been supported by real-world applications in automotive and electronics industries, where aesthetic and mechanical integrity are critical.
Cooling channels and gate placement also play a vital role. Uneven cooling leads to differential flow speeds, increasing the chances of weld lines. Proper gate locations ensure material flows meet in low-stress, less-visible regions. According to a study published in the Journal of Polymer Engineering (2019), optimized gate design reduced weld line visibility by up to 40%.
Processing conditions such as temperature, pressure, and injection speed directly impact weld line strength and appearance. Higher melt temperatures allow better flow and fusion of the material at convergence points, improving weld line strength. However, excessive temperature may degrade the material.
Recommended practices include:
- Maintaining melt temperatures within the upper range of the material’s processing window.
- Applying higher injection pressures to promote better bonding at the weld line.
- Using moderate to high injection speeds to reduce premature solidification.
Cooling rate is another critical factor. Slower cooling can lead to better molecular interdiffusion at weld lines, enhancing strength. A 2020 study from the Society of Plastics Engineers found that slower cooling improved tensile strength at weld lines by 25%.
Evaluating the mechanical performance of weld lines ensures part reliability. Common methods include:
- Tensile testing along the weld line to measure strength.
- Impact testing to assess resistance to sudden loads.
- Microscopic analysis to observe fusion quality.
Tensile tests are the most widely used. The test involves pulling a sample until failure and comparing the results with non-welded areas. ASTM D638 is the standard method for such testing. Results often show weld line strength is 20–50% lower than base material strength, depending on material and processing conditions.
Interpreting these results helps designers adjust molds and processing parameters. For instance, if results show weak weld lines in load-bearing areas, designers may relocate gates or use a valve gate approach. These test results guide iterative design improvements, ensuring product integrity.
Enhancing the quality of injection molded parts begins with clear design principles. These include avoiding sharp corners, maintaining uniform wall thickness, and incorporating draft angles to facilitate easier part ejection. According to a report by Plastics Technology (2021), consistent wall thickness alone can reduce warpage and shrinkage by up to 30%.
To minimize cosmetic defects—especially weld lines—engineers often adjust gating locations, increase mold and melt temperatures, and optimize fill speeds. While surface texturing can help mask weld lines visually, it does not address the root cause. I think the most effective way to avoid weld lines is to add a valve gate near the material convergence. By opening the needle valve at the right moment when molten plastic reaches the gate, the material remains in a molten state at the point of convergence, which significantly reduces weld line formation. This approach is supported by studies from MoldMaking Technology, which show a 40% improvement in weld line strength using valve gate systems compared to traditional cold gates.
Routine maintenance and periodic updates to mold design are also essential. Worn parts can cause flash, short shots, or increased cycle times. A survey conducted by DME Company revealed that manufacturers who perform preventive maintenance every 100,000 cycles experience 50% fewer mold failures.
To boost the mechanical strength of weld lines, it’s crucial to manage temperature and injection speed. Increasing mold temperature can enhance molecular bonding at the weld line, improving tensile strength by up to 25%, according to a study published in the Journal of Materials Processing Technology.
For visual quality, techniques such as flow leaders, improved venting, and optimized gate placement are often used. However, again, I believe that simply masking weld lines with texture is not as effective as modifying the flow pattern using valve gates. Texture can only disguise the defect—it does not eliminate the underlying structural weakness.
Notable case studies include a 2020 project by Husky Injection Molding Systems, where implementing a valve gate system in automotive parts not only eliminated visible weld lines but also increased impact resistance by 18%. This highlights the importance of integrating both design and process solutions to address weld line challenges.
When seeking a quote for custom injection molded parts, start by identifying reputable manufacturers with experience in your specific industry. Platforms like ThomasNet or Alibaba can help connect with certified molders.
Key factors to consider when requesting quotes include:
- Material type and volume
- Part complexity and tolerance requirements
- Tooling and mold lifespan
- Lead time and production capacity
It’s advisable to request a detailed breakdown of costs: tooling, unit price, setup fees, and shipping. When negotiating, prioritize long-term value over low upfront costs. Choosing a slightly more expensive vendor with better quality control may reduce scrap rates and rework expenses, ultimately saving money. According to a 2022 survey by Plastics News, 64% of companies that prioritized quality in vendor selection reported increased customer satisfaction and reduced warranty claims.
Weld lines—also known as knit lines—occur when two flow fronts of molten plastic meet and fail to fuse completely, resulting in a visible line or structural weakness. Understanding weld lines is essential due to their impact on both aesthetics and mechanical integrity. Studies, such as the one published in the Journal of Materials Processing Technology (Vol. 209, 2009), show that weld lines can reduce tensile strength by up to 30% in some materials.
To optimize injection molding processes and reduce weld lines:
- Use appropriate gating systems: I believe the most effective method is employing a valve gate near the convergence point. When molten plastic reaches this area, opening the valve gate ensures a more unified flow front and minimizes the formation of weld lines.
- Adjust processing parameters: Higher mold temperatures and faster injection speeds can help reduce the visibility and weakness of weld lines, as shown in research by the Society of Plastics Engineers (SPE).
- Part and mold design: Avoid sharp corners and sudden changes in wall thickness to encourage even flow.
While some may suggest applying surface textures to hide weld lines, I think this method is limited in effectiveness. Texture only masks the problem cosmetically and does not improve structural integrity. A better approach is to address the root cause through proper gating and flow control.
To expand your understanding and stay updated on best practices, consider the following resources:
-
Recommended Readings:
- “Injection Molding Handbook” by Tim A. Osswald
- Articles from Plastics Technology Magazine on weld line prevention
- Research papers on weld line strength from the Journal of Polymer Engineering
-
Industry Forums and Communities:
- Reddit’s r/engineering and r/manufacturing subreddits
- LinkedIn groups such as “Injection Molding Professionals”
- The SPE (Society of Plastics Engineers) online community
-
Expert Consultations:
- Reach out to mold design consultants or local injection molding service providers
- Contact institutions like the American Injection Molding Institute for technical support and training
By leveraging these tools and knowledge bases, manufacturers can significantly improve product quality and reduce defects associated with weld lines.
