TPU vs. Other Elastomers: Material Selection and Comparative Analysis

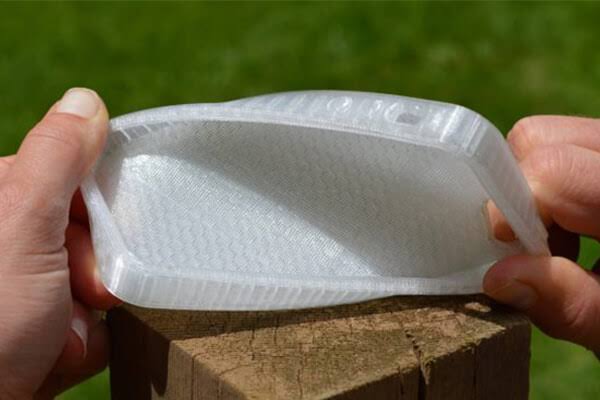

Understanding TPU Properties and Performance Characteristics
Thermoplastic Polyurethane (TPU) consists of hard and soft segments that provide unique physical properties. This block copolymer structure allows for high elasticity while maintaining structural integrity under stress.
- Abrasion Resistance: TPU outperforms many rubbers, with Taber abrasion loss often below 10 mg after 1000 cycles.
- Oil/Grease Resistance: It resists degradation from hydrocarbons, making it ideal for automotive seals.
Hardness typically ranges from Shore 60A to 75D, offering design flexibility. Lower Shore A values provide soft-touch feel, while higher Shore D values offer rigid support.
TPU vs. TPE (Thermoplastic Elastomers): A Detailed Comparison
TPU offers superior mechanical strength compared to standard Styrenic Block Copolymer (SBC) based TPEs. While TPEs are softer, TPU maintains durability in high-stress applications without permanent deformation.
- Durability: TPU resists cut growth and tearing better than general-purpose TPE.
- Cost Analysis: TPU raw material costs are higher, but its longevity reduces replacement frequency.
Choose TPU for high-wear environments like shoe soles or industrial wheels. Standard TPE suits low-cost, low-stress items like soft-grip handles where extreme durability is not critical.
TPU vs. Silicone: Evaluating Trade-offs for Product Design
Silicone excels in extreme temperatures, ranging from -50°C to 200°C, whereas TPU typically operates between -40°C and 80°C. However, TPU provides better tensile strength and abrasion resistance than silicone.
- Biocompatibility: Both materials can meet medical standards, but silicone is preferred for long-term implantation.
- Processing: TPU processes via standard injection molding with cycle times of 30-60 seconds.
Silicone requires liquid injection molding or compression molding, which often results in longer cure times. Select TPU when faster production cycles and lower unit costs are primary drivers.
Decision Matrix for Material Selection
Select materials based on environmental exposure, mechanical load, and regulatory needs. High dynamic loads favor TPU, while static high-heat environments favor silicone.
- Environmental Factors: Consider UV stability and chemical exposure before finalizing choice.
- Regulatory Requirements: Ensure material grades meet ISO 10993 for medical or FDA standards for food contact.
Case studies show TPU successfully replacing silicone in wearable tech straps due to better tear resistance. Similarly, TPU replaces TPE in cable jackets to prevent cracking under repeated bending.

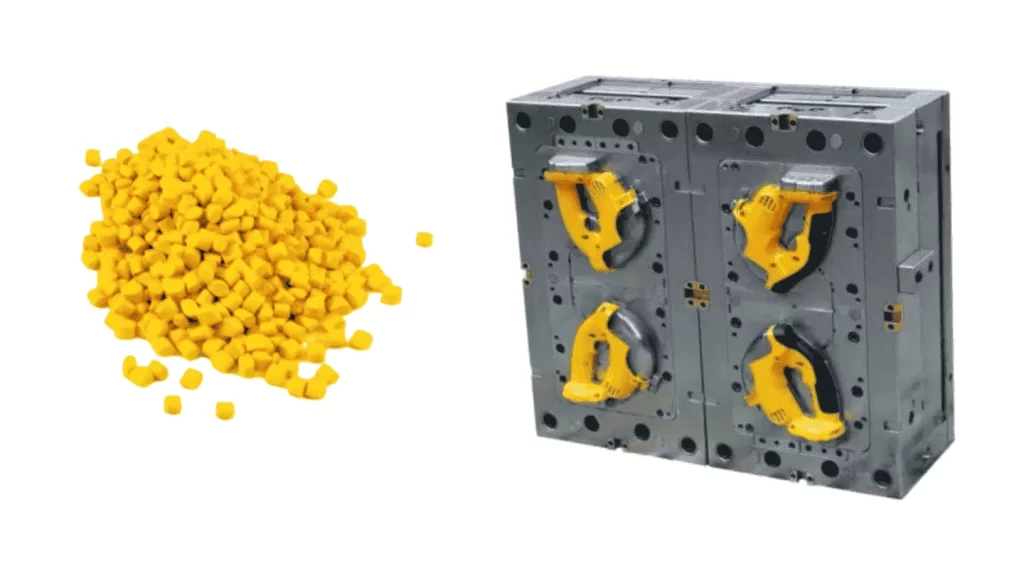

Comprehensive Guide to TPU Injection Molding Parameters
Pre-Processing Requirements: Drying and Material Handling
TPU is hygroscopic and absorbs moisture rapidly from the air. Even 0.1% moisture content causes hydrolysis, leading to severe strength loss and surface defects like splay or bubbles.
- Drying Standards: Use a dehumidifying dryer at 80°C–90°C for 2–4 hours.
- Moisture Target: Ensure residual moisture is below 0.05% before processing.
Proper storage prevents re-absorption of moisture after drying. Keep dried material in sealed, desiccant-filled containers if not used immediately.
Optimizing Melt Temperature and Barrel Settings
Melt temperature depends heavily on Shore hardness. Softer grades (Shore A) require lower temperatures, while harder grades (Shore D) need higher heat to flow properly.
- Soft TPU (Shore 80A–95A): Target 190°C–210°C.
- Hard TPU (Shore 55D–70D): Target 210°C–230°C.
Set the barrel profile to increase gradually from feed to nozzle. This ensures consistent melting without localized overheating.
Watch for signs of thermal degradation such as yellowing or a burnt smell. If observed, reduce the nozzle temperature by 5°C–10°C immediately.
Injection Pressure, Speed, and Cooling Strategies
Injection pressure must be high enough to fill the cavity but low enough to prevent flash. Typical pressures range from 600 to 1,200 bar depending on part geometry.
- Injection Speed: Use moderate speeds to limit shear heating.
- Risk: High speed generates excessive friction heat, causing material degradation.
Cooling time is critical for cycle efficiency and part stability. Mold temperature should be maintained between 20°C and 40°C using chilled water.
Apply back pressure between 5 and 15 bar during screw recovery. This compresses the melt, removes air pockets, and ensures consistent shot weight.
Machine Selection and Screw Design
Select a screw with a compression ratio between 2.0:1 and 2.5:1. This range provides gentle mixing suitable for TPU’s sensitivity to shear heat.
- L/D Ratio: Choose a length-to-diameter ratio of 20:1 to 24:1.
- Screw Type: General-purpose screws with a shallow metering section work best.
Use a free-flow nozzle with a large orifice to reduce pressure drop. Gate sizing should be generous to minimize shear rates during entry.
Avoid check rings that trap material, as stagnant TPU degrades quickly. Ensure all flow paths are smooth and free of dead spots.

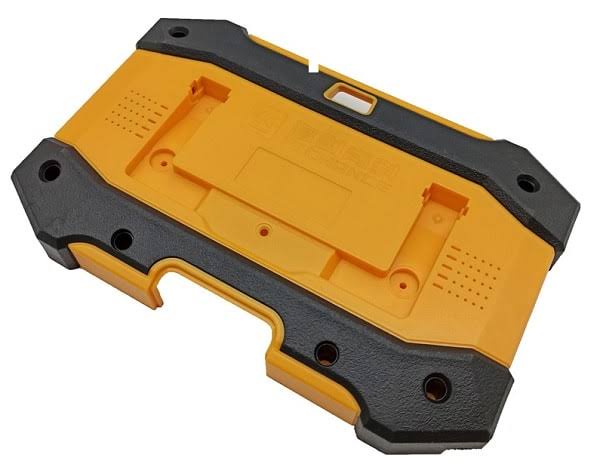

Design Guidelines for Defect-Free TPU Parts
Wall Thickness and Uniformity Best Practices
Target wall thicknesses between 1.5 mm and 3.0 mm for most applications. Softer grades (Shore A 80-90) tolerate thinner walls, while harder grades (Shore D 50+) require thicker sections to prevent flow hesitation.
Thickness by Hardness:
Avoid abrupt changes in geometry to prevent internal stresses and warpage. Use gradual transitions with a ratio of 1:3 (height to length) when moving between thick and thin sections.
Draft Angles and Undercut Management
TPU’s high coefficient of friction requires generous draft angles for successful ejection. Apply a minimum draft of 1° per side for smooth surfaces and 2°–3° for textured areas.
Draft Requirements:
- Smooth Surface: Minimum 1° draft.
- Light Texture: Minimum 2° draft.
- Heavy Texture: Minimum 3°–5° draft.
Design undercuts with care to avoid part tearing during demolding. Use flexible side-actions or limit undercut depth to less than 5% of the part dimension for soft grades.
Gate Placement and Runner System Design
Select gate types that minimize shear stress and preserve material integrity. Submarine gates and edge gates are preferred, while hot runner systems offer better control for large production runs.
Gate Selection:
Place gates to ensure balanced filling and reduce weld lines in high-stress areas. Size runners generously (6–8 mm diameter) to lower pressure drop and prevent premature cooling.
Rib and Boss Design for Structural Integrity
Keep rib thickness at 50–60% of the adjacent wall thickness to prevent sink marks. This ratio ensures structural stiffness without creating excessive mass that cools slowly.
Rib Guidelines:
- Thickness: 0.5x – 0.6x of main wall.
- Height: Max 3x rib thickness.
- Base Fillet: Radius = 0.25x – 0.5x rib thickness.
Design bosses with adequate clearance for screw inserts to avoid stress cracking. Use fillets at the boss base to distribute load and improve material flow during injection.
Troubleshooting Common TPU Injection Molding Defects
Identifying and Resolving Splay Marks (Silver Streaks)
Splay marks often stem from moisture or excessive heat. TPU is hygroscopic and requires strict drying protocols.
- Moisture Check: Dry TPU at 80–90°C for 4–6 hours.
- Target Moisture: Keep levels below 0.05% by weight.
Distinguish splay types by observing streak patterns. Moisture splay appears silvery, while thermal degradation causes yellowing or black specks.
Lower the melt temperature if thermal degradation is suspected. Increase venting depth to 0.02–0.04 mm to release trapped air.
Preventing Part Sticking and Ejection Issues
Sticking usually results from poor draft angles or vacuum locks. Ensure draft angles are at least 1–2 degrees for deep cavities.
- Surface Finish: Polish mold surfaces to a mirror finish (Ra < 0.2 µm).
- Release Agents: Use silicone-based sprays sparingly to avoid buildup.
Optimize cooling time to ensure part rigidity before ejection. High mold temperatures can soften TPU, increasing friction against the mold wall.
Adjust ejector pin placement to distribute force evenly. Avoid placing pins on thin walls to prevent puncture or deformation.
Addressing Flash, Short Shots, and Burn Marks
Flash occurs when clamping force is insufficient for the injection pressure. Verify that tonnage matches the projected area of the part.
- Clamping Force: Calculate based on 0.3–0.5 tons per cm².
- Mold Maintenance: Inspect parting lines for wear or debris regularly.
Short shots indicate incomplete filling due to low pressure or blocked vents. Increase injection speed to reduce material viscosity during flow.
Burn marks arise from trapped air compressing and heating up. Reduce injection speed to allow air to escape through vents.
Managing Warpage and Dimensional Instability
TPU shrinkage varies significantly by hardness grade. Softer grades (e.g., 80 Shore A) shrink more than harder grades (e.g., 95 Shore D).
- Typical Shrinkage: Range from 0.5% to 2.0%.
- Design Compensation: Scale mold dimensions up by the specific shrinkage rate.
Uneven cooling causes internal stresses that lead to warpage. Maintain uniform mold temperature between 40–60°C across all zones.
Post-molding annealing can stabilize dimensions for critical parts. Heat parts at 60–80°C for 2–4 hours to relieve residual stress.
Selecting a Reliable TPU Injection Molding Partner
Key Criteria for Evaluating Manufacturing Suppliers
Verify the supplier’s specific experience with Thermoplastic Polyurethane (TPU) grades. Look for proven track records in processing hygroscopic materials that require strict moisture control below 0.02% before molding.
- Certifications: Ensure compliance with ISO 9001 for general quality.
- Industry Specifics: Require ISO 13485 for medical devices or IATF 16949 for automotive parts.
Assess their tooling expertise and production capacity limits. A reliable partner should demonstrate ability to handle both low-volume prototypes and high-volume runs without compromising dimensional stability.
Assessing Technical Support and Engineering Collaboration
Prioritize partners who provide detailed Design for Manufacturability (DFM) analysis early in the process. This feedback helps adjust draft angles and wall thicknesses to prevent sink marks and ensure proper ejection.
- Simulation: Use Moldflow analysis to predict filling patterns.
- Material Consulting: Leverage expert advice on hardness ranges (e.g., Shore 80A vs. 95A).
Establish clear communication protocols for project updates. Transparent project management ensures timely resolution of engineering constraints and reduces development cycles.
Prototyping to Production: Scalability and Consistency
Evaluate the supplier’s ability to transition smoothly from rapid prototyping to mass production. Consistent cycle times and maintained tolerances are critical during this scale-up phase.
Check supply chain reliability to avoid production delays. Consistent lead times for raw TPU resin and finished goods are essential for maintaining your inventory levels.
Cost Structure and Value Proposition
Analyze the trade-off between initial tooling costs and per-unit piece price. High-volume projects often justify higher upfront steel tooling costs to achieve lower long-term unit prices.
- Hidden Costs: Account for secondary operations like deflashing or printing.
- Logistics: Include packaging and shipping fees in your budget.
Request detailed quotes to calculate the Total Cost of Ownership (TCO). Comparing TCO rather than just piece price reveals the true financial impact of the manufacturing partnership.
