Understanding Weld Lines: Definitions, Types, and Formation Mechanics
Defining the Defect: Weld Lines vs. Knit Lines vs. Meld Lines
Weld lines form when two separate molten polymer flow fronts meet and solidify. This typically occurs at acute angles, creating a visible seam on the part surface.
Meld lines differ by forming where flow fronts merge at obtuse angles greater than 135 degrees. These lines are often less visible and retain higher structural integrity than standard weld lines.
- Knit Lines: A specific subset of weld lines with poor molecular entanglement. They often result from flow around obstacles like pins or inserts.

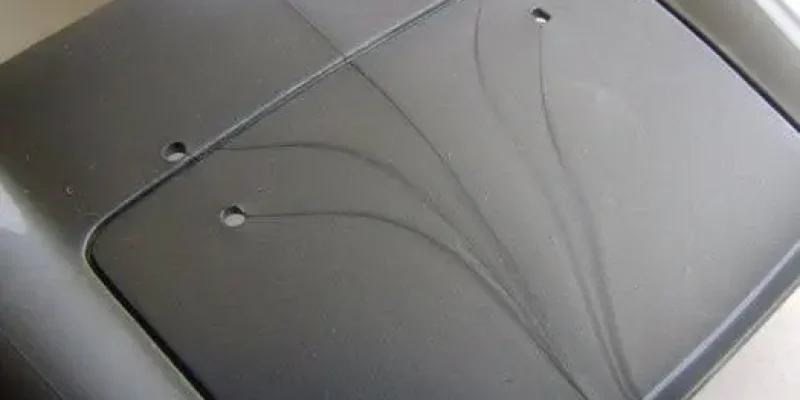

- Visual Signs: Look for V-notches, slight discoloration, or surface depressions along the convergence path.
The Physics of Flow Front Interaction
Polymer chains must entangle across the interface to create a strong bond. Rapid cooling often prevents sufficient diffusion, leading to weak interfacial strength.
A frozen skin layer forms quickly on the flow front surface. This layer acts as a barrier to molecular mixing when the fronts finally converge.
| Flow Front Angle | Line Type | Molecular Entanglement | Typical Strength Retention |
|---|---|---|---|
| < 90° | Weld/Knit Line | Low | 10% – 30% |
| 90° – 135° | Transition Zone | Moderate | 40% – 60% |
| > 135° | Meld Line | High | 70% – 90% |
Complex geometries and multi-gate systems make weld lines inevitable. Engineers must manage their location rather than attempting total elimination.
Mechanical and Aesthetic Implications
Weld lines significantly reduce tensile strength and impact resistance at the interface. Parts may fail prematurely under load if stress concentrates at these weak points.
Cosmetic defects such as visible lines or discoloration affect consumer perception. This is critical for high-gloss or transparent automotive and electronic components.
- Stress Concentration: The line acts as a crack initiator under cyclic loading.
- Structural Correlation: Higher visibility usually indicates lower molecular bonding and reduced mechanical performance.
Root Cause Analysis: Why Weld Lines Form in Injection Molding
Material-Related Factors
Resin viscosity directly dictates how well flow fronts merge. High-viscosity materials resist blending, creating weak interfaces.
- Amorphous Polymers: Materials like ABS or PC allow better molecular diffusion. They typically retain 80-90% of base strength at weld lines.
- Semi-Crystalline Polymers: Materials like PP or PA6 form distinct crystal structures rapidly. This often limits weld strength to 50-70% of the base material.
Fillers significantly alter flow behavior and interface integrity. Glass fibers tend to orient parallel to the flow front rather than crossing it.
| Filler Type | Impact on Visibility | Strength Reduction Estimate |
|---|---|---|
| Glass Fiber (30%) | High (visible line) | 40-60% |
| Mineral Fillers | Moderate | 20-30% |
| Unfilled Resin | Low | 10-20% |
Moisture and degradation further weaken the bond. Hydrolysis in hygroscopic resins like Nylon reduces molecular weight. This leads to brittle fracture points exactly where flows meet.
Mold Design and Geometry Constraints
Multiple gates create inevitable converging flow fronts. The angle of convergence determines the severity of the defect.
- Convergence Angle: Angles below 135 degrees produce strong welds. Angles approaching 180 degrees create weak knit lines.
- Gate Placement: Strategic gating can push weld lines to non-critical areas.
Geometric features act as flow obstacles that split the melt stream. Holes, inserts, and sudden thickness changes force material to separate and rejoin.
Runner system design critically affects temperature at the convergence point. Long runners cause significant pressure drop and heat loss.
| Design Feature | Engineering Constraint | Mitigation Strategy |
|---|---|---|
| Thin Walls | Rapid cooling | Increase wall thickness to >2mm |
| Multiple Gates | Flow front collision | Use valve gates for sequential filling |
| Poor Venting | Trapped air/gas | Add vents 0.02-0.04mm deep at weld locations |
Inadequate venting traps air between meeting flow fronts. This prevents direct polymer-to-polymer contact. The trapped gas acts as a barrier, causing voids or burns.
Processing Parameter Variables
Melt temperature must exceed the material’s glass transition or melting point sufficiently. Low temperatures cause premature freezing of the skin layer.
- Target Range: Process 20-30°C above the standard midpoint for better fusion.
- Risk: Excessive heat causes degradation, weakening the part overall.
Injection speed controls the time available for heat retention. Slow injection allows the flow front to cool before merging.
High injection speeds generate shear heat. This keeps the material fluid longer, promoting molecular entanglement at the interface.
Holding pressure ensures continuous packing of the weld zone. Inadequate pressure allows shrinkage to pull the interface apart.
| Parameter | Effect on Weld Line | Recommended Adjustment |
|---|---|---|
| Melt Temp | Higher temp improves diffusion | Increase by 10-15°C |
| Injection Speed | Faster speed reduces cooling | Maximize without causing flash |
| Mold Temp | Hotter mold slows skin formation | Raise to 80-100°C for engineering resins |
| Holding Pressure | Compensates for shrinkage | Extend hold time until gate freeze |
Cold mold surfaces accelerate the formation of a solid skin. This skin hinders molecular diffusion across the weld line.
Maintaining mold surface temperature near the material’s heat deflection point helps. It allows more time for polymer chains to intertwine before solidifying.
Design Optimization Strategies to Prevent or Relocate Weld Lines
Strategic Gate Placement and Runner System Design
Use simulation tools like Moldflow early in the design phase. These tools predict weld line locations before cutting steel.
- Position gates to push weld lines into non-critical areas.
- Target hidden zones such as under ribs or behind bosses.
Single-gate designs eliminate converging flows entirely. This approach removes weld lines but may increase injection pressure requirements.
| Strategy | Benefit | Constraint |
|---|---|---|
| Single Gate | No weld lines | High clamp tonnage needed |
| Balanced Runners | Uniform flow front | Complex mold machining |
Optimize runner balance to ensure uniform flow front arrival. Uneven filling causes weak bonds at convergence points.
Part Geometry Modifications
Increase wall thickness at potential weld line areas by 10-15%. Thicker sections retain heat longer for better polymer fusion.
Add flow leaders or deflectors to redirect melt fronts. These features improve merging angles to exceed 135 degrees.
- Avoid sharp corners that cause flow separation.
- Use generous radii to maintain laminar flow.
Design ribs and bosses with adequate clearance. Obstructions create separate flow fronts that weaken the part.
| Feature | Recommendation | Purpose |
|---|---|---|
| Wall Thickness | +10% local increase | Heat retention |
| Merge Angle | >135 degrees | Stronger bond |
| Corner Radius | R > 0.5mm | Flow continuity |
Venting and Surface Finish Considerations
Place vents directly at predicted weld line locations. Trapped air prevents proper molecular bonding of the melt.
Select mold surface finishes to mask minor visual defects. A matte finish scatters light better than a glossy one.
- Use textured surfaces (e.g., VDI 3400 Ref 27) in aesthetic zones.
- Textures hide linear marks effectively compared to polished steel.
Ensure draft angles are sufficient for ejection. Stressing weak weld lines during ejection causes cracks.
| Parameter | Typical Value | Effect |
|---|---|---|
| Vent Depth | 0.02 – 0.04 mm | Air escape without flash |
| Texture Grade | Medium-Coarse | Visual masking |
| Draft Angle | Min 1-2 degrees | Safe ejection |
Processing Adjustments and Troubleshooting for Existing Weld Lines
Temperature and Speed Optimization
Increasing melt temperature enhances polymer chain mobility. This promotes better diffusion across the flow front interface.
Raising the mold temperature slows the cooling rate. A typical increase of 10–20°C allows more time for flow fronts to merge effectively.
Boosting injection speed reduces heat loss before convergence. High shear rates generate internal heat, improving fusion at the weld line.
| Parameter | Adjustment | Typical Range/Effect |
|---|---|---|
| Melt Temp | Increase | +10–20°C above standard |
| Mold Temp | Increase | Slows skin formation |
| Injection Speed | Increase | Reduces thermal decay |
Balance these changes against cycle time implications. Higher temperatures require longer cooling periods to prevent part deformation.
Pressure and Packing Techniques
Increase injection pressure to force material into the interface. Higher pressure ensures intimate contact between converging flow fronts.
Optimize holding pressure to compensate for shrinkage. Extend holding time until the gate freezes to maintain density at the weld line.
Use decompression (suck-back) carefully to prevent nozzle drool. Excessive suck-back can introduce air bubbles that weaken the weld.
| Technique | Purpose | Constraint |
|---|---|---|
| Holding Pressure | Compensate shrinkage | Avoid flash at seams |
| Back Pressure | Improve homogeneity | Monitor motor load |
| Decompression | Prevent drool | Keep minimal (2–5mm) |
Adjust back pressure to improve melt homogeneity. Uniform temperature distribution prevents cold spots from reaching the weld zone.
Advanced Processing Solutions
Implement dynamic mold temperature control systems like induction heating. These systems heat specific zones to 100–150°C during filling.
Rapid cooling follows immediately after packing. This method significantly improves weld line strength without extending overall cycle time.
Use valve gating sequences to control flow front timing. Sequential gating directs flow to push weld lines into non-critical areas.
- Local Heating: Apply cartridge heaters near predicted weld lines.
- Timing: Activate heaters only during the fill phase.
- Cooling: Use water lines for rapid heat extraction post-fill.
Refer to this checklist for immediate on-press troubleshooting:
- Verify melt temperature uniformity across the barrel.
- Check for adequate venting at weld line locations.
- Increase injection speed in increments of 5%.
- Monitor holding pressure decay curves for consistency.
Material Selection and Quality Assurance Protocols
Choosing Resins for Superior Weld Line Performance
Material choice directly dictates weld line integrity. Amorphous resins like ABS and PC generally retain 80-90% of base strength at weld lines.
Semi-crystalline materials like Nylon and PP often show lower retention, typically 50-70%. This difference stems from rapid crystallization inhibiting polymer chain entanglement across the flow front.
- ABS/PC: High strength retention due to slow cooling and amorphous structure.
- Nylon/PP: Lower retention requires higher melt temperatures to ensure proper merging.
Unfilled resins outperform filled counterparts in weld strength. Glass fibers orient parallel to the flow front, creating a weak boundary with minimal fiber bridging.
Low viscosity grades facilitate better flow and merging. They allow polymer chains to interdiffuse more effectively before the material solidifies.
| Material Type | Typical Strength Retention | Key Consideration |
|---|---|---|
| Unfilled ABS | 85-95% | Excellent for high-stress joints |
| 30% Glass-Filled PP | 40-60% | Avoid for critical structural welds |
| Low Viscosity PC | 80-90% | Requires precise temperature control |
Be cautious with lubricants and mold release agents. These additives migrate to the surface and act as barriers to polymer bonding.
Internal lubricants can reduce weld strength by up to 20%. Always verify additive compatibility with welding requirements during material selection.
Quantitative Testing and Inspection Standards
Tensile testing provides concrete data on weld line weakness. Compare the ultimate tensile strength of welded specimens against non-welded controls.
Aim for a strength reduction of less than 15% for critical parts. Values exceeding 20% often indicate process instability or poor material choice.
Impact resistance tests reveal brittleness at the weld interface. Use Izod or Charpy methods on specimens with intentionally created weld lines.
Weld lines often serve as initiation points for crack propagation. A significant drop in impact energy signals inadequate molecular entanglement.
Visual inspection remains the first line of defense. Define clear criteria for acceptable versus rejectable weld line severity.
- Acceptable: Faint line, no depth, smooth to touch.
- Rejectable: Visible groove, discoloration, or rough texture.
Advanced non-destructive testing ensures internal integrity. Ultrasonic testing detects voids or delamination within the weld zone.
X-ray imaging identifies density variations caused by poor merging. These methods are essential for safety-critical components where visual checks are insufficient.
Establishing Quality Control Benchmarks
Cosmetic specifications must define allowable weld line visibility. Set strict limits on length, depth, and location for consumer-facing parts.
Document baseline mechanical properties for parts with unavoidable weld lines. This data serves as a reference for production deviations.
Regular calibration of processing parameters is vital. Small changes in melt temperature or injection speed significantly affect weld quality.
- Melt Temperature: Maintain within ±5°C of setpoint.
- Injection Speed: Keep consistent to ensure uniform shear heating.
Integrate weld line monitoring into automated inspection systems. Vision systems can detect surface defects in real-time.
Automated feedback loops adjust parameters to maintain consistency. This reduces scrap rates and ensures uniform part quality across production runs.
