Injection Molding Gates: Types, Sizing & Design

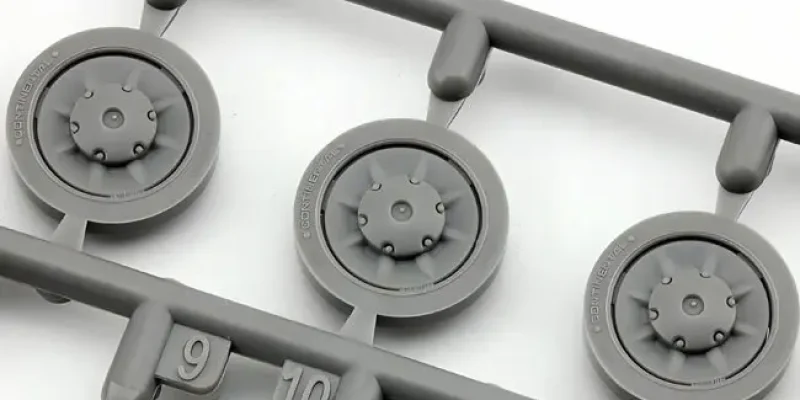

Edge gates are the most common design due to their simplicity and low tooling cost. They typically feature a rectangular cross-section with depths ranging from 0.5 mm to 1.5 mm.

Submarine gates, also known as tunnel gates, allow for automatic part separation during ejection. This design requires precise angle machining, usually between 30° and 45°, to ensure clean shearing.

Pinpoint gates are ideal for three-plate molds and multi-cavity tools. They leave a small vestige, often less than 1 mm in diameter, minimizing post-molding finishing work.

Fan gates spread the melt flow over a wider area to reduce jetting risks. The gate thickness tapers from the runner to the part cavity.

Tab gates include a small protrusion on the part edge to absorb gate shear stress. This protects the main part surface from high-velocity melt damage.

Diaphragm and ring gates are used for cylindrical parts requiring uniform flow. They ensure concentricity and minimize weld lines in round geometries.

Gate Type	Typical Depth/ Diameter	Automatic Degating?	Best For
Edge Gate	0.5 – 1.5 mm	No	General purpose parts
Submarine	0.8 – 1.2 mm	Yes	High-volume production
Pinpoint	0.5 – 1.0 mm	Yes	Multi-cavity tools
Fan Gate	0.5 – 1.0 mm (thick end)	No	Wide, flat parts

Flat panels benefit from fan or film gates to prevent warpage. These designs distribute pressure evenly across the wide surface area.

Cylindrical parts require pinpoint or diaphragm gates for balanced filling. This approach avoids asymmetric shrinkage and maintains dimensional stability.

High-viscosity materials like polycarbonate need larger gate dimensions. A typical rule of thumb is to size the gate at 50-80% of the wall thickness.

• Low Viscosity (e.g., PA, PP): Smaller gates (0.5–0.8 mm) prevent drooling.
• High Viscosity (e.g., PC, PMMA): Larger gates (1.0–1.5 mm) reduce shear heating.

Aesthetic surfaces demand hidden or self-trimming gates. Submarine or pinpoint gates leave minimal marks on visible areas.

Structural integrity depends on proper gate location relative to stress points. Gates should not be placed near high-load bearing features.

Improper gating can create weak weld lines. Position gates to push weld lines into non-critical structural zones.

Automotive bumpers often use large fan gates to handle high-flow polypropylene. This ensures uniform surface finish and reduces internal stress.

Interior trim pieces may utilize hot runner valve gates for precise control. This eliminates vestiges and allows for complex aesthetic requirements.

Consumer electronics housings frequently employ pinpoint gates. This method supports multi-cavity molds for high-volume production efficiency.

Laptop casings often hide submarine gates under ribs or bosses. This maintains a clean exterior appearance while ensuring robust filling.

Medical devices require strict contamination control and precision. Valve gates are preferred to prevent material degradation and ensure repeatability.

Syringe barrels often use ring gates to maintain circularity. This prevents ovality that could compromise piston sealing performance.

Large appliance parts like washing machine tubs use diaphragm gates. This ensures balanced flow for large, deep-draw geometries.

Thick-walled appliance components may need multiple edge gates. This reduces the required injection pressure and clamp tonnage.

Place gates at the thickest section of the part. This ensures proper packing pressure reaches dense areas before the material solidifies.

Aim for a uniform flow front across the mold cavity. Uneven advancement traps air and creates weak weld lines.

• Keep weld lines away from high-stress functional zones.
• Avoid placing gates near ejector pins or delicate cores.

Balance flow lengths in multi-cavity molds carefully. Use natural balancing or artificial runners to ensure each cavity fills simultaneously.

Consideration	Best Practice
Flow Balance	Equalize runner lengths
Stress Zones	Gate away from load-bearing ribs
Air Traps	Position vents opposite the gate

Adjust gate width to control shear heating and flow rate. Wider gates reduce shear stress but may leave larger vestiges.

• Use fan or tab gates to break up high-velocity streams.
• Direct flow against a pin or wall to dissipate kinetic energy.

Transmit packing pressure effectively to mitigate sink marks. Ensure the gate remains open longer than the part’s thickest section freeze time.

Use symmetric gating patterns to reduce residual stress. Asymmetric filling causes differential cooling and internal tension.

Manage shrinkage differences by controlling orientation. High shear rates at the gate align polymer chains, leading to anisotropic shrinkage.

Factor	Impact on Warpage
Gate Symmetry	Reduces differential shrinkage
Freeze-off Time	Affects packing efficiency
Shear Rate	Influences molecular orientation

Monitor gate freeze-off time closely. Early freeze-off prevents adequate packing, causing dimensional instability.

Leverage simulation tools like Moldflow to predict warpage risks. Validate gate locations virtually before cutting steel to avoid costly rework.

Manual degating relies on hand tools like flush cutters, knives, or rotary files. Operators physically separate the gate from the molded part.

• Tools Required: Standard industrial snips and deburring knives.
• Technique: Requires skilled hand movements to avoid part damage.

Labor costs dominate this method, especially for low-volume runs under 5,000 units. It avoids high capital expenditure but incurs recurring wage expenses.

Quality consistency varies significantly between operators and shifts. Human fatigue often leads to uneven cuts or surface scratches.

• Risk: Inconsistent gate vestige height.
• Impact: Higher rejection rates in strict tolerance applications.

Safety is a primary concern due to repetitive sharp tool use. Proper training and cut-resistant gloves are mandatory to prevent injuries.

Self-degating gates, such as tunnel or submarine gates, break automatically during mold opening. This eliminates secondary operations entirely for suitable parts.

• Gate Type: Tunnel gate angles typically range from 30° to 45°.
• Benefit: Zero labor cost for gate removal.

Robotic trimming systems use end-of-arm tooling to cut or tear gates. These systems integrate directly with injection molding machines.

In-mold cutting mechanisms shear the gate before ejection. This ensures a clean finish without post-processing.

• Precision: Cut tolerance within ±0.1 mm.
• Speed: Adds negligible time to the overall cycle.

Conveyor-based separation methods use vibration or air jets to detach parts. These are ideal for small, lightweight components with brittle gates.

Integration with automated assembly lines streamlines the entire workflow. Parts move directly from molding to packaging or assembly.

High-volume production justifies the upfront cost of automatic systems. Manual labor becomes prohibitively expensive above 50,000 units annually.

• Volume Threshold: Automation ROI typically hits at 100k+ units.
• Cost Driver: Labor hours vs. machine amortization.

Break-even points depend on the complexity of the degating task. Simple snap-off gates favor automation sooner than complex trim requirements.

Automatic systems reduce cycle time variability by removing human pacing. Consistent timing improves overall equipment effectiveness (OEE).

• Efficiency Gain: 5–15% reduction in total cycle time.
• Metric: Improved parts-per-hour output.

Maintenance for automatic systems requires specialized technical staff. Regular calibration prevents drift in cutting precision.

Scalability favors automatic solutions for growing production needs. Adding robotic cells is easier than hiring and training large labor forces.

Factor	Manual Degating	Automatic Degating
Initial Cost	Low (< $500 for tools)	High ($50k–$200k+)
Labor Cost	High (ongoing)	Low (maintenance only)
Consistency	Variable	High
Best For	Prototypes, Low Volume	Mass Production

Gate dimensions directly dictate the shear rate experienced by the polymer melt. Smaller gates force material through a restricted area, exponentially increasing shear rates.

• Shear Rate Formula: $\dot{\gamma} = \frac{4Q}{\pi R^3}$
  • $Q$ = Volumetric flow rate
  • $R$ = Gate radius

This intense friction generates significant internal heat within the melt stream. Temperatures can rise by 20°C to 50°C above the barrel setting in tight gates.

High shear rates cause shear-thinning, which temporarily lowers viscosity. This allows faster filling but requires precise control to avoid instability.

Parameter	Small Gate Effect	Large Gate Effect
Shear Rate	High	Low
Viscosity	Decreased (Shear-thinning)	Higher
Temp Rise	Significant	Minimal

Small gates create high-risk zones for thermal degradation, especially in shear-sensitive materials like PVC or POM. Excessive heat breaks polymer chains, reducing molecular weight.

Residence time in the runner system must be minimized to prevent heat buildup. Long, cold runners act as heat sinks but increase cycle times and energy use.

• Critical Signs of Degradation:
  • Black specks or splay marks on the surface.
  • Burnt odor during mold opening.
  • Reduced tensile strength in test samples.

Adjusting injection speed is the primary lever for protecting material integrity. Slower injection reduces shear heating but may cause premature freezing in thin sections.

Material-specific limits define the maximum allowable shear stress. For example, Polycarbonate tolerates higher shear than Acetal (POM).

Proper gate sizing ensures consistent surface finish by controlling the flow front temperature. Uneven cooling leads to gloss variations or flow lines.

Balanced runner systems distribute pressure evenly across all cavities. This reduces internal stresses and warpage in the final part.

Quality Issue	Primary Cause	Sizing Solution
Warpage	Unbalanced cooling/stress	Balance runner lengths/diameters
Sink Marks	Insufficient packing	Increase gate diameter slightly
Weight Variation	Inconsistent fill	Optimize gate land length

Gate size directly correlates with part weight consistency. A gate that freezes too early prevents proper packing pressure transmission.

Troubleshooting often involves iterative adjustments to gate land length and depth. Standard practice suggests a gate depth of 50-80% of the wall thickness.

Controlled cooling rates improve mechanical properties by optimizing crystallinity in semi-crystalline materials. Rapid cooling via small gates can lock in amorphous structures, affecting long-term performance.

Hot runner systems use heated manifolds to keep plastic molten from the injection unit to the gate. This eliminates solidified material in the runner channels.

Cold runner systems rely on unheated channels that allow plastic to cool and solidify. The runner must be ejected and separated from the part after each cycle.

Feature	Hot Runner System	Cold Runner System
Runner State	Molten	Solidified
Temperature Control	Active heating (200°C–300°C)	Passive cooling
Gate Type	Often valve-gated or thermal	Typically edge or submarine

Valve-gated hot runners use pneumatic or hydraulic pins to control material flow. This allows precise timing for multi-cavity molds and prevents drooling.

Insulated runner technologies use large channel diameters to create a thermal barrier. The outer layer solidifies while the core remains molten.

Temperature control is critical for hot runners to prevent material degradation. PID controllers maintain temperatures within ±1°C of the setpoint.

Cold runners require less complex temperature management but need consistent cooling line design. Uneven cooling can lead to warpage or sink marks.

Initial tooling costs for hot runner systems are significantly higher than cold runners. Complex manifolds and heater assemblies drive up the price.

• Hot Runner Tooling: 30%–50% more expensive initially.
• Cold Runner Tooling: Lower upfront investment.

Hot runners eliminate runner waste, reducing material usage by up to 95% for large parts. This is crucial for expensive engineering resins like PEEK or PC.

Cycle times improve with hot runners because there is no runner to cool. The cycle is determined solely by the part wall thickness.

Maintenance costs for hot runners include replacing heaters, thermocouples, and valve pins. These components have finite lifespans under thermal cycling.

Energy consumption is higher for hot runners due to continuous heating requirements. However, reduced cycle times can offset energy costs per part.

Cost Factor	Hot Runner	Cold Runner
Material Waste	Near Zero	High (Runner + Sprue)
Cycle Time	Faster (No runner cooling)	Slower (Runner limits cycle)
Maintenance	High (Heaters/Pins)	Low (Standard wear)

Choose cold runners for low-volume production or prototype runs. The simplicity reduces lead time and initial risk.

Hot runners are ideal for high-volume production where material savings justify the cost. They also enable faster cycle times for competitive pricing.

Material compatibility is a key constraint for hot runners. Shear-sensitive materials like PVC may degrade in prolonged residence times.

• Suitable for Hot Runners: PP, PE, ABS, PC.
• Risky for Hot Runners: PVC, certain flame-retardant grades.

Design complexity increases with hot runner systems due to manifold layout constraints. Mold designers must account for thermal expansion and balance flow lengths.

Long-term ROI favors hot runners when annual production exceeds 100,000 parts. Material savings and cycle time reductions compound over time.

Evaluate total cost of ownership rather than just tooling price. Include material costs, energy usage, and maintenance labor in your analysis.
