Fix Injection Molding Short Shots: Causes & Solutions

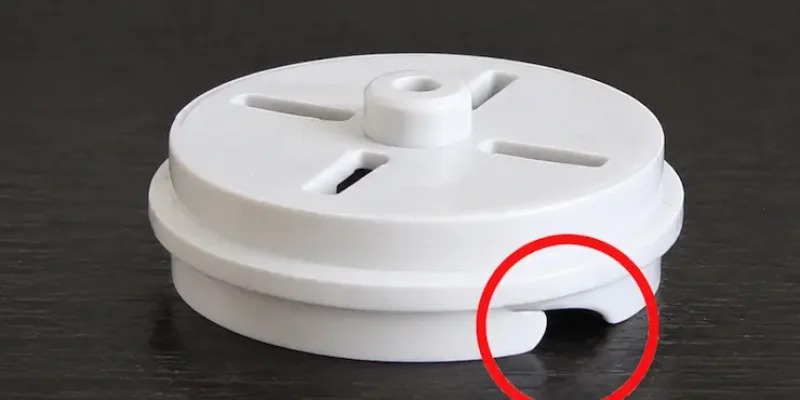

A short shot occurs when molten plastic fails to completely fill the mold cavity. The resulting part shows missing material rather than surface imperfections.

• Key Visual Cues: Look for rounded, smooth edges at the end of the flow path. Sharp corners indicate the mold was fully filled but cooled improperly.

Defect Type	Visual Characteristic	Root Cause Indicator
Short Shot	Missing geometry, smooth ends	Insufficient fill volume or pressure
Sink Mark	Surface depression, full geometry	Cooling shrinkage or packing issues
Weld Line	Visible line, full geometry	Flow fronts meeting prematurely

Short shots frequently appear in areas farthest from the gate or in thin-walled sections. Complex geometries with sudden thickness changes also trap air and restrict flow.

Use angled lighting and 10x magnification to inspect suspect areas. This helps distinguish between a true void and a shallow surface blemish.

Melt viscosity directly dictates how far plastic flows before solidifying. High viscosity materials require higher injection pressures to reach distant mold sections.

The Melt Flow Index (MFI) quantifies this flow capability under standard conditions. A lower MFI value indicates higher resistance to flow, increasing short shot risks.

• Moisture Impact: Excess moisture turns to steam during heating. This creates gas traps that block flow paths and reduce effective shot volume.
• Regrind Effects: Using more than 25% regrind can alter viscosity consistency. Inconsistent melt density leads to unpredictable filling patterns.

Thermal degradation increases viscosity unexpectedly if barrel temperatures exceed limits. For example, holding PVC above 200°C for extended periods causes cross-linking.

Amorphous polymers like ABS flow differently than semi-crystalline ones like Polypropylene. Semi-crystalline materials solidify faster, requiring faster injection speeds to prevent premature freezing.

Injection pressure must exceed the flow resistance within the mold cavity. If pressure is too low, the melt stops before filling the part completely.

• Insufficient Pressure: Fails to push viscous material into thin sections.
• Non-Return Valve Failure: Allows molten plastic to slip back into the barrel during injection.

Injection speed controls how fast the material enters the mold. Slow speeds allow the melt front to cool and solidify prematurely.

Parameter	Risk if Too Low	Risk if Too High
Barrel Temp	High viscosity, high pressure drop	Material degradation, gas burns
Shot Size	Incomplete cavity fill	Flash, excessive cycle time

Hydraulic inconsistencies cause unpredictable filling patterns. A drop in pump performance leads to varying shot volumes between cycles.

Trapped air creates back-pressure that opposes the incoming melt flow. Proper venting allows air to escape without letting plastic leak out.

• Poor Venting: Air pockets block flow paths in deep cavities.
• Exhaust Blockage: Debris buildup restricts gas escape, causing short shots.

Gate design directly impacts pressure loss during filling. Small gates or poor locations increase shear heat but also restrict flow volume.

Runner balance ensures each cavity fills at the same rate. Imbalanced runners cause some cavities to underfill while others overpack.

Design Feature	Impact on Filling
Wall Thickness	Thin sections freeze faster, blocking flow to thick areas
Cold Slug Well	Catches cooled material to prevent gate blockage

Variations in wall thickness create uneven cooling rates. Thin walls solidify quickly, acting as barriers to flow into adjacent thick sections.

Material viscosity changes significantly with temperature and shear rate. Using a material with a high melt flow index (MFI) can help fill complex geometries.

• Viscosity Mismatch: High viscosity materials require higher pressures to flow.
• Moisture Content: Wet resin generates steam, creating voids and flow interruptions.

Environmental conditions affect machine stability and material consistency. Humidity and ambient temperature fluctuations can alter processing windows.

Consistent material drying is critical for hygroscopic plastics like Nylon or PC. Undried material degrades at lower temperatures, increasing flow resistance.

Factor	Recommended Action
Material Drying	Follow manufacturer specs (e.g., 80°C for 4 hours)
Ambient Control	Maintain stable shop floor temperature

Degraded polymer chains lose structural integrity and flow properties. This results in inconsistent filling and weak final parts.

• Pressure and Speed Optimization

  • Increase injection pressure in 5–10 bar increments to ensure cavity fill. Monitor holding pressure to compensate for material shrinkage during cooling.
  • Utilize multi-stage injection profiles to control shear heat. Start with a slow speed (10–20 mm/s) to pass the gate, then accelerate to fill the bulk of the part.

• Thermal and Shot Control

  • Adjust barrel temperatures within ±5°C of the resin manufacturer’s recommended range. Ensure the nozzle temperature is slightly lower than the front zone to prevent drooling.
  • Verify shot size allows for a consistent cushion of 3–5 mm. This cushion ensures proper pressure transfer from the screw to the melt.

• Cooling and Tuning Strategy

  • Set cooling time based on the thickest wall section plus a 10–15% safety margin. Premature ejection causes warpage due to internal stresses.
  • Change only one parameter at a time during troubleshooting. Document each adjustment to isolate the root cause effectively.

• Valve and Heating System Checks

  • Inspect the non-return valve for wear if shot consistency varies by more than 2%. A leaking valve causes pressure loss during the holding phase.
  • Test heater bands and thermocouples for accurate feedback. Replace any band showing a deviation greater than ±3°C from the setpoint.

• Hydraulic and Plasticizing Performance

  • Maintain hydraulic oil levels within the manufacturer’s specified range. Low oil levels lead to pump cavitation and inconsistent injection speeds.
  • Monitor screw recovery time to ensure it fits within the cooling cycle. Inconsistent recovery indicates worn screw flights or check rings.

• Sensor Calibration and Nozzle Integrity

  • Calibrate pressure transducers and position sensors every 6 months. Accurate data is critical for repeatable process control.
  • Clean the nozzle tip regularly to remove carbonized material. Obstructions cause flow restrictions and uneven filling patterns.

Mold Flow Analysis (MFA) software predicts how molten plastic fills a cavity. It identifies potential short shots before physical tooling begins.

• Virtual Fill Prediction: Simulates flow fronts to spot air traps.
• Gate Optimization: Tests multiple gate locations for balanced filling.

Engineers analyze pressure drop maps to refine part geometry. This data helps determine the minimum viable wall thickness for specific materials.

Parameter	Typical Range/Goal	Impact
Pressure Drop	< 100 MPa	Reduces clamp tonnage requirements
Wall Thickness	1.5mm – 3.0mm	Balances strength and cycle time

Simulation results must be validated against actual trial runs. Discrepancies often reveal issues with material viscosity data or boundary conditions.

Design for Manufacturability (DFM) Best Practices

Uniform wall thickness is critical for consistent cooling rates. Variations cause differential shrinkage and internal stresses.

• Target Variation: Keep thickness within ±10% of nominal.
• Cooling Time: Dictated by the thickest section of the part.

Strategic gate placement minimizes flow distance and pressure loss. Gates should be located at the thickest cross-sections to aid packing.

Venting systems require precise dimensions to allow air escape without flash. Standard vent depths range from 0.01 mm to 0.03 mm depending on material viscosity.

Feature	Recommended Value	Purpose
Draft Angle	1° – 2° per side	Facilitates ejection
Vent Depth	0.015 mm (typical)	Prevents gas trapping
Radius at Corners	0.5x Wall Thickness	Reduces stress concentration

Proper draft angles reduce friction during ejection. Avoid abrupt changes in cross-sectional area to prevent flow hesitation.

Early collaboration with mold makers mitigates manufacturing risks. Their feedback on core-cavity splits and machining constraints saves costly redesigns.

Define strict Acceptable Quality Limits (AQL) for short shot defects to maintain consistency.
Typical AQL values range from 0.65% for critical components to 2.5% for general parts.

Implement Automated Optical Inspection (AOI) systems for real-time defect detection.
These systems identify incomplete fills within milliseconds, allowing immediate machine adjustment.

• Create Standard Operating Procedures (SOPs) for immediate defect response.
• Train operators to visually identify short shots and report them instantly.

Document defect trends weekly to drive continuous improvement initiatives.
Integrate Statistical Process Control (SPC) to monitor injection pressure and hold time.

Parameter	Control Limit	Action Level
Injection Pressure	±5% of setpoint	Alert Operator
Hold Time	±0.1 seconds	Auto-reject Part
Cushion Size	2-5 mm	Check Non-return Valve

Dry hygroscopic materials like Nylon or PC to prevent viscosity drops.
Maintain dew points below -40°C and drying temperatures between 80°C to 120°C.

Monitor ambient humidity in storage areas to keep it below 50% RH.
Control room temperature between 18°C and 24°C to prevent premature material degradation.

• Enforce First-In-First-Out (FIFO) inventory management strictly.
• This practice prevents resin aging and ensures consistent melt flow indices.

Test raw material properties before production starts.
Verify melt flow rate (MFR) and moisture content against supplier certificates.

Limit regrind usage to prevent mechanical property loss.
Blend regrind at ratios no higher than 20-30% with virgin material.

Communicate regularly with suppliers to ensure specification consistency.
Request batch-specific data sheets for every new material delivery.

Adjust injection speed to balance fill rate and material shear heating.
Too slow causes premature freezing; too fast leads to jetting or burns.

Optimize holding pressure to compensate for volumetric shrinkage.
Typical hold pressures range from 40% to 80% of maximum injection pressure.

• Set cooling time based on part wall thickness and material thermal conductivity.
• Insufficient cooling leads to ejection marks and warpage.

Monitor nozzle temperature to prevent drooling or cold slugs.
Keep nozzle temps 5°C to 10°C lower than the front barrel zone.

Validate gate size and location during mold design phases.
Undersized gates increase shear stress and restrict flow into thin sections.

Use mold flow analysis software to predict fill patterns.
Identify potential air traps and weld lines before cutting steel.
